One of the key elements of precision machining, are CNC tool holders. They are used to connect a cutting tool with rotating spindle in metalworking, woodworking or construction so that the spindles may be adjusted and tightened once mated between the Male Screw and Female Screw. Whether you are milling, drilling or tapping CNC tool holders affect productivity and tool life as well as the surface finish of the final component.
What Are CNC Tool Holders?
Avid also products CNC tool holders which are devices that hold cutting tools in place and transmit rotation from the spindle. They’re designed to reduce vibration, keep tools in alignment and bear repeatable levels of engagement with the workpiece. Without the right cnc tool holder, even the best cutters cannot work to their full potential.
Tool holder is usually made from high grade alloy steel, hardened and ground in most precise dimensions. This lends rigidity and minimizes micro movements during cutting.

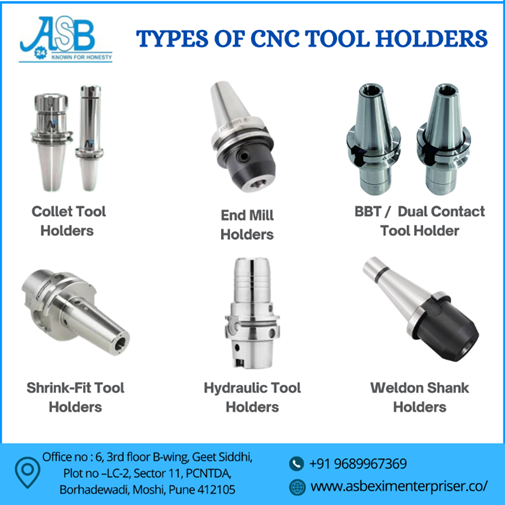

The Most Common Types of CNC Tool Holders
CNC tool holders Various CNC tool holders are required for different machining operations. Below are the most popular:
1.Collet Tool Holders (ER Collets)
They are also popular because of their flexibility. Collet holders have great clamping force and are perfect for drilling, milling, reaming and tapping.
These holders are for heavy duty milling, they clamping is very tight and the tool will not pull out. They provide the highest stability in roughing setups.
3.BBT / Dual Contact Tool Holder
BBT tool holders utilize double contact with the spindle (taper and flange face) for significantly improved rigidity, accuracy, dynamic balance and vibration dampening. This gives a more rigid setup and is good for high speed milling.
4.Shrink-Fit Tool Holders
Shrink-fit holders rely upon thermal expansion to hold the cutter. They offer excellent concentricity and are ideal for finishing applications with close tolerances.
5.Hydraulic Tool Holders
These apply hydraulic press to release the tool and offer good vibration dampening. Applicable for drilling, reaming and milling fine.
6.Weldon Shank Holders
They’re straightforward and are very secure; they’re often found in heavy-duty milling when you don’t want the tool to pull out.
All of these kinds of CNC tool holders are designed with a particular goal in mind, and selecting the correct one makes for good machining.
Why CNC Tool Holders Are Critical in Machining
With better CNC tool holders you get:
1.Improved Accuracy
Effective tool clamping results in enhanced precision, particularly for high-precision components.
2.Reduced Vibration
Surface finish and tool life are affected directly by vibration. Good toolholders help mitigate this chatter, and incidentally also improve rigidity.
3.Better Surface Finish
The tool cuts more easily by hard connection and provides a better surface.
4.Longer Tool Life
Tools have longer lived as there is minimal micro movement and wear.
5.Higher Productivity
With reliable tool holding cutting times will be higher, and therefore production levels increased.
CNC tool holder is usually undervalued in importance from many manufacturers, but these are somehow as important as the cutting tools.
How to Select the Appropriate CNC Tool Holder
The choice of a suitable tool carrier varies and depends on the:
1.Type of Operation
Finishing is required to be high precision (shrink-fit or hydraulic), and roughing needs to be excellent rigidity (end mill holders).
2.Material Being Machined
Stable CNC tool holder are needed to dampen vibration in hard materials stainless steel and titanium.
3.Tool Size and Shank Type
Coordinate shank size, flute length and holder type to use the fully rigid connection.
4.Machine Spindle Type
Make sure you are compatible with BT or BBT/HKS/CAT machine tool spindle systems.
5.Required RPM and Feed Rates
Such a high-speed machining will be performed using double contacted or shrink fit holders.
6.Budget and Maintenance
Some, such as hydraulic or shrink-fit holders, have higher prices but yield savings in the long run that can be reflected in precision and tool life.
Picking wisely guarantees that your CNC tool holder serve the best performance for your application.
CNC Tool Holders Maintenance Considerations
Below are a few more maintenance tips on how to prolong the life and efficient work of CNC tool holder:
- Clean tapers and bores regularly
- Inspect for runout or wear
- Replace worn collets immediately
- Holders and store in a cool area.
- Tool balance assemblies for high-speed machining
Even the best CNC tool holder fail when maintenance is ignored.
Why ASB Exim Enterpriser Stands Out in CNC Tool Holders
ASB Exim Enterpriser provides a wide range of high-precision CNC tool holders designed for stable, accurate, and vibration-free machining. Their products support advanced milling, drilling, and high-speed operations across various industries. With reliable quality and industry-focused solutions, they help manufacturers achieve better performance and longer tool life.
Conclusion
CNC tool holders is an important accessory for machining center machine tool. They deliver stability, precision and a flawless surface. An understanding of the types, applications, and selection considerations can lead to overall gains in performance and productivity. Investing in high-quality CNC tool holder is not just a purchase it’s a long-term investment in machining quality and efficiency.
